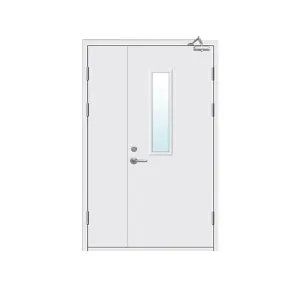

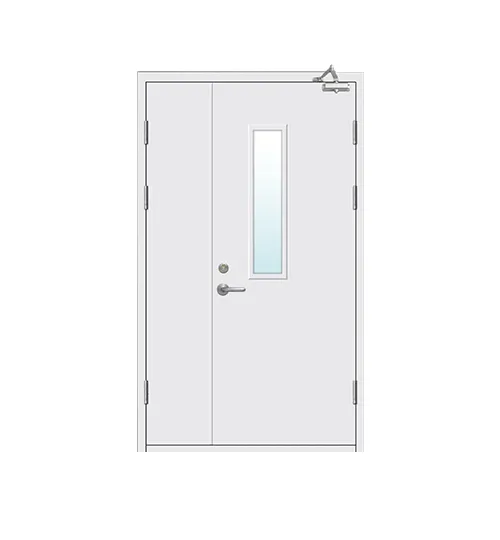

Steel insulated fire doors: Advanced Protection and Thermal Performance for Modern Buildings

1. Introduction: The Essential Role of Steel Insulated Fire Doors

Steel insulated fire doors are one of the most critical components in modern building safety systems. Their primary function is to prevent the spread of fire and smoke, ensuring safe evacuation routes and protecting valuable property and equipment. Designed with high-strength cold-rolled steel sheets and integrated with high-performance thermal insulation materials, steel insulated fire doors offer both exceptional fire resistance and outstanding durability.

In addition to meeting national fire protection requirements, these doors also deliver superior thermal efficiency, sound insulation, structural reliability, and aesthetic versatility. They are used extensively in high-risk and high-traffic locations such as stairwells, emergency escape passages, electrical rooms, underground facilities, and essential functional areas within residential, commercial, and public buildings.

With certified fire resistance ratings of 30, 60, or 120 minutes, steel insulated fire doors provide critical defense during emergencies, helping to buy valuable time for both evacuation and fire response. When properly installed and regularly maintained, they ensure long-term fire safety compliance and stable building performance.

2. Material Structure and Manufacturing Features

2.1 High-Quality Cold-Rolled Steel Sheets

The outer shell of a steel insulated fire door is manufactured from carefully selected high-quality cold-rolled steel. This material is chosen for its:

• High tensile strength and mechanical stability

• Smooth, uniform surface finish

• Resistance to impact and deformation

• Consistency under high temperatures

• Compatibility with various protective surface coatings

Cold-rolled steel undergoes precise manufacturing processes, which enhance its hardness, flatness, and durability. This ensures that the door maintains structural integrity even when exposed to extreme conditions.

2.2 Fireproof and Heat-Insulating Core Composition

The core of a steel insulated fire door is filled with flame-retardant and thermally insulating materials specifically engineered to slow heat transfer and resist ignition. Typical core materials include:

• High-density rock wool

• Perlite-based fireproof panels

• Magnesium oxide composite boards

• Ceramic fiber insulation

• Multilayer heat-resistant fillers

These core materials provide excellent thermal stability, enabling the door to remain intact and structurally sound during prolonged exposure to fire. They also support energy efficiency by reducing heat loss and maintaining indoor temperature balance during daily use.

2.3 High-Temperature-Resistant Hardware Components

Reliable fire protection requires all hardware components to function properly under high heat. Steel insulated fire doors are equipped with:

• Heavy-duty fire-rated hinges

• Self-resetting fireproof latches

• Fire-resistant door closers

• Durable lock systems

• High-elastic heat-expanding sealing strips

These hardware accessories are tested to ensure they remain operational during critical moments, allowing the door to automatically close, seal, and block smoke and flames.

2.4 High-Elastic Smoke-Proof Sealing Strips

To block smoke—which is often more dangerous than flames—steel insulated fire doors use heat-sensitive intumescent sealing strips. These strips expand when exposed to high temperatures, filling structural gaps along the door frame to prevent smoke infiltration.

3. Fire Resistance Ratings and Safety Performance

3.1 Certified Fire Resistance (30/60/120 Minutes)

Steel insulated fire doors are available in multiple fire protection classifications based on testing standards:

The certified ratings indicate how long the door can withstand fire while maintaining structural integrity. High-performance insulated cores and fire-rated hardware ensure the door remains functional during evacuation.

3.2 Smoke Control and Thermal Protection

A key advantage of steel insulated fire doors is their ability to provide both fire resistance and thermal insulation. Their design helps:

• Block smoke from spreading into evacuation corridors

• Minimize heat conduction to the non-fire side

• Reduce temperature rise, preventing fire propagation

• Protect sensitive equipment in electrical or mechanical rooms

This dual functionality is essential for modern buildings requiring both fire safety and energy efficiency.

4. Strength, Durability, and Structural Reliability

4.1 Reinforced Steel Construction

The high-strength steel structure ensures that the door remains stable even under prolonged pressure, heat, or mechanical impact. Frame reinforcements and multi-point steel connections provide:

• Excellent impact resistance

• Resistance to bending or warping

• Superior load-bearing performance

• Long-term durability in high-usage environments

These features make steel insulated fire doors ideal for high-traffic areas where reliability is essential.

4.2 Surface Protection and Anti-Corrosion Coatings

To ensure long-term service life, the steel door surface is typically treated with anti-corrosion coatings such as:

• Electrostatic powder coating

• Zinc galvanization

• Moisture-resistant primers

These coatings protect the steel from rust, humidity, and environmental wear, ensuring long-term aesthetic appeal and performance.

5. Thermal and Acoustic Performance in Daily Use

Steel insulated fire doors are not only safety barriers—they also contribute to indoor comfort and energy savings.

5.1 Excellent Thermal Insulation

The thermal insulation core reduces heat transfer, helping:

• Maintain stable indoor temperatures

• Minimize energy loss

• Reduce air-conditioning or heating costs

This makes steel insulated fire doors well-suited for both hot and cold climatic regions.

5.2 Sound Insulation and Noise Reduction

Their dense structure and insulated core materials offer effective soundproofing:

• Blocking noise transmission

• Providing acoustic privacy

• Enhancing comfort in offices, hospitals, hotels, and residential buildings

These features expand the functional value of the door beyond fire protection.

6. Aesthetic Options and Design Flexibility

Modern steel insulated fire doors can be customized in various design options:

• Multiple surface colors

• Powder-coated finishes

• Wood-grain patterns

• Vision panels with fire-rated glass

• Push bars, security locks, or smart access systems

This flexibility allows the doors to blend seamlessly with different architectural styles while maintaining safety compliance.

7. Applications Across a Wide Range of Building Types

Steel insulated fire doors are widely used in:

Residential Buildings

• Apartment entrances

• Corridor fire partitions

• Basement access

Commercial Buildings

• Shopping malls

• Office towers

• Hotels and public venues

Industrial and Utility Facilities

• Electrical control rooms

• Generator rooms

• Mechanical equipment rooms

Public Buildings

• Schools

• Hospitals

• Government offices

Their ability to provide both fire protection and insulation makes them essential in environments where safety and thermal performance are equally important.

8. Installation Standards and Best Practices

Proper installation is crucial to ensuring the fire door performs as intended. Key installation requirements include:

• Correct frame positioning and anchoring

• Ensuring door-leaf-to-frame clearance is within tolerance

• Using exclusively fire-rated and certified hardware

• Verifying automatic self-closing function

• Checking sealing strip installation accuracy

Only trained technicians should perform installation to guarantee compliance with fire safety regulations.

9. Maintenance, Inspection, and Long-Term Stability

To preserve long-term performance, steel insulated fire doors require regular maintenance. Recommended inspection steps include:

• Checking for rust, dents, or structural deformation

• Lubricating hinges and mechanical components

• Ensuring the automatic closer functions properly

• Inspecting and replacing damaged sealing strips

• Verifying locking mechanisms and latch operation

Scheduled maintenance ensures the door can reliably perform in emergencies and maintains compliance with fire safety inspections.

10. Conclusion: Reliable, Efficient, and Essential Safety Protection

Steel insulated fire doors combine fire resistance, thermal insulation, structural strength, and long-term durability into a single safety solution. Built with premium cold-rolled steel and high-performance insulating cores, they offer comprehensive protection during emergencies while improving the everyday energy efficiency and acoustic comfort of a building.

From residential complexes to commercial centers, industrial facilities, and public institutions, steel insulated fire doors play a crucial role in modern building safety. With proper installation and consistent maintenance, they provide secure fire containment, stable performance, and long-lasting reliability—making them an essential investment for any structure prioritizing safety and energy efficiency.
